MMX Performance BMW N54 N55 S55 Oil Temp & Pressure Gauge Adaptor

The MMX Performance BMW N54 / N55 / S55 Oil Temperature and Pressure Adaptor is a precision-machined billet fitting that replaces the OE plug on the oil cooler thermostat assembly with a 1/8 NPT port. It is the cleanest, most reliable way to add an auxiliary oil pressure or oil temperature gauge to BMW's twin-scroll and single-turbo six-cylinder engines without modifying the oil pan, sump, or block.

Machined from aircraft-grade T6061 billet aluminum and finished in MMX's signature gloss black anodizing, the adaptor pairs OEM-style fit with a finished, engine-bay-quality appearance. The 1/8 NPT thread accepts virtually any standard automotive oil pressure or oil temperature sensor, giving you accurate, real-time data on what's happening to your oil under load, exactly the information you want when running increased boost, sustained track use, or aggressive street driving.

For tuned and high-output N54, N55, and S55 cars, monitoring oil pressure and temperature isn't optional, it's the difference between catching a problem early and finding out the hard way. This adaptor takes the guesswork out of the installation: no welding, no drilling, no oil pan removal. Just unthread the OE plug, install the MMX adaptor with the supplied seal, and thread in your sender.

Highly recommended for any hard-driven N54-, N55-, or S55-powered BMW used on track or running an increased state of tune.

Product Details

• 1/8 NPT female port: accepts standard automotive oil pressure or temperature senders

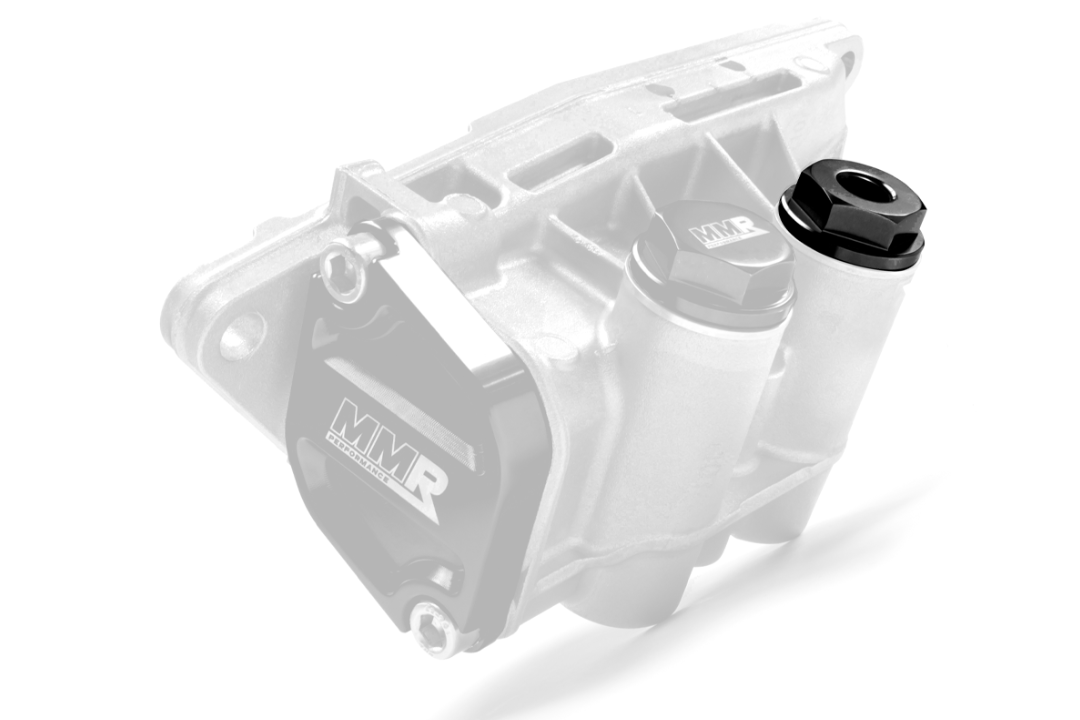

• Replaces OE plug on the factory oil cooler thermostat assembly
• Machined from aircraft-grade T6061 billet aluminum
• Anodized gloss black for long-term corrosion resistance and an OEM+ engine bay finish
• Pairs with the MMX Oil Thermostat Cover Set for a fully finished oil filter housing
• SKU: MMR03-0502-KPBL

Related Products

• MMX Performance BMW N54 / N55 Low Temperature Oil Thermostat
• MMX Performance BMW S55 / N55 / N54 Oil Thermostat Housing Cover Kit

Notes

• Sender / gauge sold separately: adaptor accepts any standard 1/8 NPT oil pressure or temperature sender
• Recommended companion to the MMX Oil Thermostat Cover Set; the cover set can be ordered with or without the adaptor pre-installed
• Use only with the OE oil cooler thermostat housing, confirm engine code before ordering
• Includes a 1-year manufacturer warranty against defects in materials and workmanship
• Designed and tested in the United Kingdom
